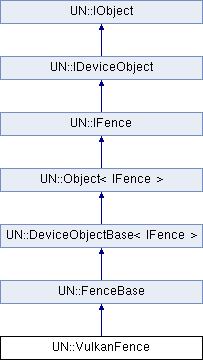

Inheritance diagram for UN::VulkanFence:

Public Member Functions
	VulkanFence (IComputeDevice *pDevice)

void	Reset () override
	Reset the object to uninitialized state. More...

ResultCode	SignalOnCpu () override
	Signal the fence on CPU. More...

ResultCode	WaitOnCpu (std::chrono::nanoseconds timeout) override
	Wait for the fence to signal. More...

ResultCode	WaitOnCpu () override
	Wait for the fence to signal. More...

void	ResetState () override
	Reset fence state. More...

FenceState	GetState () override
	Get current fence state. More...

VkFence	GetNativeFence () const

Public Member Functions inherited from UN::FenceBase
ResultCode	Init (const DescriptorType &desc) override

Public Member Functions inherited from UN::DeviceObjectBase< IFence >
const DescriptorType &	GetDesc () const override

std::string_view	GetDebugName () const override

IComputeDevice *	GetDevice () const override

UInt32	Release () override

Public Member Functions inherited from UN::Object< IFence >
UInt32	Release () override

	Object (const Object &)=delete

	Object (Object &&)=delete

UInt32	AddRef () override
	Add a strong reference to the object. More...

void	AttachRefCounter (ReferenceCounter *pRefCounter) override
	Attach a reference counter to the object. More...

ReferenceCounter *	GetRefCounter () override
	Get reference counter attached to this object. More...

virtual const DescriptorType &	GetDesc () const =0

virtual ResultCode	Init (const DescriptorType &desc)=0

virtual ResultCode	SignalOnCpu ()=0
	Signal the fence on CPU. More...

virtual ResultCode	WaitOnCpu (std::chrono::nanoseconds timeout)=0
	Wait for the fence to signal. More...

virtual ResultCode	WaitOnCpu ()=0
	Wait for the fence to signal. More...

virtual void	ResetState ()=0
	Reset fence state. More...

virtual FenceState	GetState ()=0
	Get current fence state. More...

virtual std::string_view	GetDebugName () const =0
	Get debug name of the object.

virtual void	Reset ()=0
	Reset the object to uninitialized state. More...

virtual IComputeDevice *	GetDevice () const =0
	Get the compute device this object was created on. More...

virtual UInt32	AddRef ()=0
	Add a strong reference to object's reference counter. More...

virtual UInt32	Release ()=0
	Remove a strong reference from object's reference counter. More...

virtual void	AttachRefCounter (ReferenceCounter *counter)=0
	Attach a ReferenceCounter to this object. More...

virtual ReferenceCounter *	GetRefCounter ()=0
	Get reference counter that belongs to this object. More...

Static Public Member Functions
static ResultCode	Create (IComputeDevice pDevice, IFence *ppFence)

Protected Member Functions
ResultCode	InitInternal (const DescriptorType &desc) override

Protected Member Functions inherited from UN::FenceBase
virtual ResultCode	InitInternal (const DescriptorType &desc)=0

	FenceBase (IComputeDevice *pDevice)

Protected Member Functions inherited from UN::DeviceObjectBase< IFence >
void	Init (std::string_view name, const DescriptorType &desc)
	Common device object initializer. More...

	DeviceObjectBase (IComputeDevice *pDevice)

Protected Member Functions inherited from UN::Object< IFence >
UInt32	Release (F &&destroyCallback)

Additional Inherited Members
Public Types inherited from UN::DeviceObjectBase< IFence >
using	DescriptorType = typename TInterface::DescriptorType

Public Types inherited from UN::IFence
using	DescriptorType = FenceDesc

Protected Attributes inherited from UN::DeviceObjectBase< IFence >
Ptr< IComputeDevice >	m_pDevice

DescriptorType	m_Desc

std::string	m_Name

Member Function Documentation

◆ GetState()

FenceState UN::VulkanFence::GetState ( )

overridevirtual

Get current fence state.

Implements UN::IFence.

◆ InitInternal()

ResultCode UN::VulkanFence::InitInternal ( const DescriptorType & desc )

overrideprotectedvirtual

Implements UN::FenceBase.

◆ Reset()

void UN::VulkanFence::Reset ( )

overridevirtual

Reset the object to uninitialized state.

Implements UN::IDeviceObject.

◆ ResetState()

void UN::VulkanFence::ResetState ( )

overridevirtual

Reset fence state.

Implements UN::IFence.

◆ SignalOnCpu()

ResultCode UN::VulkanFence::SignalOnCpu ( )

overridevirtual

Signal the fence on CPU.

Implements UN::IFence.

◆ WaitOnCpu() [1/2]

ResultCode UN::VulkanFence::WaitOnCpu ( )

inlineoverridevirtual

Wait for the fence to signal.

Same as WaitOnCpu(std::chrono::nanoseconds), but without a timeout.

Returns: ResultCode::Success or an error code.

Implements UN::IFence.

◆ WaitOnCpu() [2/2]

ResultCode UN::VulkanFence::WaitOnCpu ( std::chrono::nanoseconds timeout )

overridevirtual

Wait for the fence to signal.

Parameters

timeout - Waiting timeout in nanoseconds.

Returns: ResultCode::Success, ResultCode::Timeout or an error code.

Implements UN::IFence.

The documentation for this class was generated from the following files:

NativeSource/UraniumCompute/UnCompute/VulkanBackend/VulkanFence.h
NativeSource/UraniumCompute/UnCompute/VulkanBackend/VulkanFence.cpp
