UN::IFence Class Reference

An interface for fences - synchronization primitives that can be either signaled or reset. More...

#include <IFence.h>

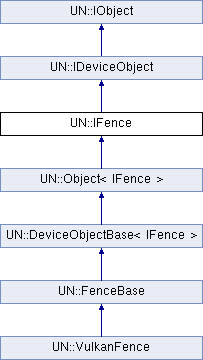

Inheritance diagram for UN::IFence:

Public Types
using	DescriptorType = FenceDesc

Public Member Functions
virtual const DescriptorType &	GetDesc () const =0
virtual ResultCode	Init (const DescriptorType &desc)=0
virtual ResultCode	SignalOnCpu ()=0
	Signal the fence on CPU. More...
virtual ResultCode	WaitOnCpu (std::chrono::nanoseconds timeout)=0
	Wait for the fence to signal. More...
virtual ResultCode	WaitOnCpu ()=0
	Wait for the fence to signal. More...
virtual void	ResetState ()=0
	Reset fence state. More...
virtual FenceState	GetState ()=0
	Get current fence state. More...
Public Member Functions inherited from UN::IDeviceObject
virtual std::string_view	GetDebugName () const =0
	Get debug name of the object.
virtual void	Reset ()=0
	Reset the object to uninitialized state. More...
virtual IComputeDevice *	GetDevice () const =0
	Get the compute device this object was created on. More...
Public Member Functions inherited from UN::IObject
virtual UInt32	AddRef ()=0
	Add a strong reference to object's reference counter. More...
virtual UInt32	Release ()=0
	Remove a strong reference from object's reference counter. More...
virtual void	AttachRefCounter (ReferenceCounter *counter)=0
	Attach a ReferenceCounter to this object. More...
virtual ReferenceCounter *	GetRefCounter ()=0
	Get reference counter that belongs to this object. More...

Detailed Description

An interface for fences - synchronization primitives that can be either signaled or reset.

Member Function Documentation

GetState()

virtual FenceState UN::IFence::GetState ( )

pure virtual

Get current fence state.

Implemented in UN::VulkanFence.

ResetState()

virtual void UN::IFence::ResetState ( )

pure virtual

Reset fence state.

Implemented in UN::VulkanFence.

SignalOnCpu()

virtual ResultCode UN::IFence::SignalOnCpu ( )

pure virtual

Signal the fence on CPU.

Implemented in UN::VulkanFence.

WaitOnCpu() [1/2]

virtual ResultCode UN::IFence::WaitOnCpu ( )

pure virtual

Wait for the fence to signal.

Same as WaitOnCpu(std::chrono::nanoseconds), but without a timeout.

Returns

ResultCode::Success or an error code.

Implemented in UN::VulkanFence.

WaitOnCpu() [2/2]

virtual ResultCode UN::IFence::WaitOnCpu ( std::chrono::nanoseconds  timeout )

pure virtual

Wait for the fence to signal.

Parameters

timeout

- Waiting timeout in nanoseconds.

Returns

ResultCode::Success, ResultCode::Timeout or an error code.

Implemented in UN::VulkanFence.

---

The documentation for this class was generated from the following file:

• NativeSource/UraniumCompute/UnCompute/Backend/IFence.h
